Pulse Input – CC-PPIX01

Function

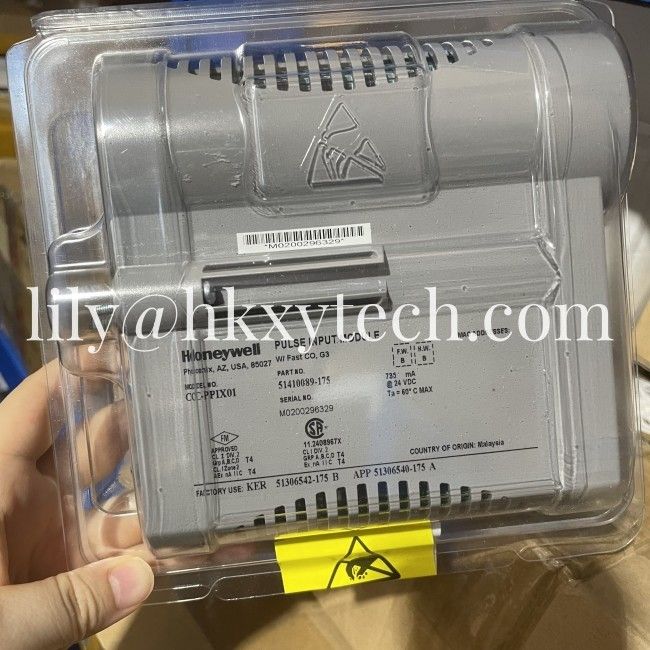

The Pulse Input Module (PIM) provides the Experion C300 controller with the ability to monitor various pulse input fieldvalues. The PI module processes signals from pulse-generating devices and provides a calculated rate and anaccumulated total. The PI supports a “fast cutoff” capability to stop dosing operations when the threshold has been met.High-accuracy and repeatable measurement capability make the PIM well suited for metering and custody transferapplications.This module is specifically engineered to support the MeterSuite Custody Transfer Application including support for dualpulse per ISO6551. Implementation of ISO-6551/API 5.5 for dual pulse inputs, including Level A, pulse integrity.

Notable Features

• Extensive self-diagnostics

• Optional redundancy

• High Accuracy Frequency, Period and Pulse WidthMeasurement

• Supports the MeterSuite Application

• ISO 6551 Fidelity
