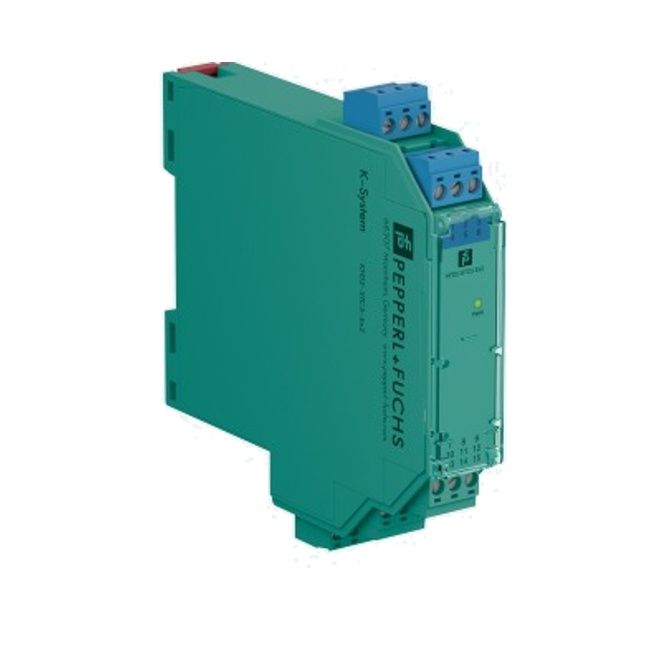

Pepperl+Fuchs KFD2-STC5-EX2 SMART Transmitter Power Supply

Pepperl+Fuchs KFD2-STC5-EX2 SMART Transmitter Power Supply

Model: KFD2-STC5-EX2

Supplier: Pepperl+Fuchs

Categories: Intrinsic Safety Barriers

Please contact us for more information.

Need a Quote?Online Message

PRODUCT DESCRIPTION

P+F_barrier



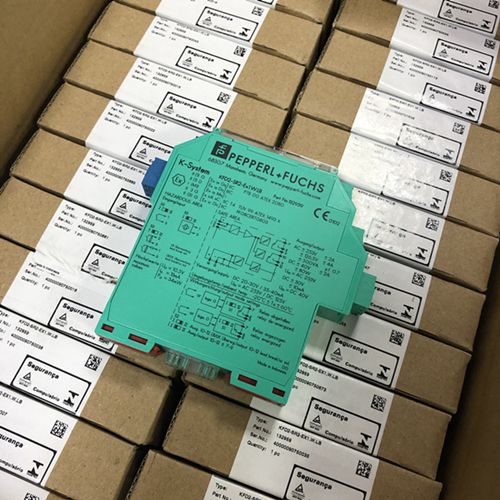

SMART Transmitter Power Supply KFD2-STC5-Ex2 2-channel isolated barrier



24 V DC supply (Power Rail)

Input 2-wire and 3-wire SMART transmitters and 2-wire SMART current sources

Output 0/4 mA ... 20 mA current sink/current source

Terminals with test points

SIL 2 (SC 3) acc. to IEC/EN 61508




General specifications
Signal typeAnalog input
Functional safety related parameters
Safety Integrity Level (SIL)SIL 2
Systematic capability (SC)SC 3
Supply
ConnectionPower Rail or terminals 14+, 15-
Rated voltage18 ... 30 V DC
Ripplewithin the supply tolerance
Power dissipation≤ 1.4 W at maximum load
Power consumption≤ 2.6 W at maximum load
Input
Connection sidefield side
Connectionterminals 1+, 2-, 3; 4+, 5-, 6
Input signal0/4 ... 20 mA
Open circuit voltage/short-circuit currentterminals 1+, 3; 4+, 6: 23 V / 25 mA
Input resistancemax. 265 Ω terminals 2-, 3; 5-, 6 , max. 330 Ω terminals 1+, 3; 4+, 6
Available voltage≥ 16 V at 20 mA ; ≥ 20 V at 4 mA , terminals 1+, 3; 4+, 6
Output
Connection sidecontrol side
Connectionterminals 7+, 8-, 9-; 10+, 11-, 12- (sink)
terminals 7-, 8+, 9+; 10-, 11+, 12+ (source)
see additional information
Load0 ... 600 Ω
Output signal0/4 ... 20 mA (overload > 25 mA)
Ripplemax. 50 µA rms
External supply (loop)2 ... 30 V DC
