Pressure and Vacuum Switches for Process Applications

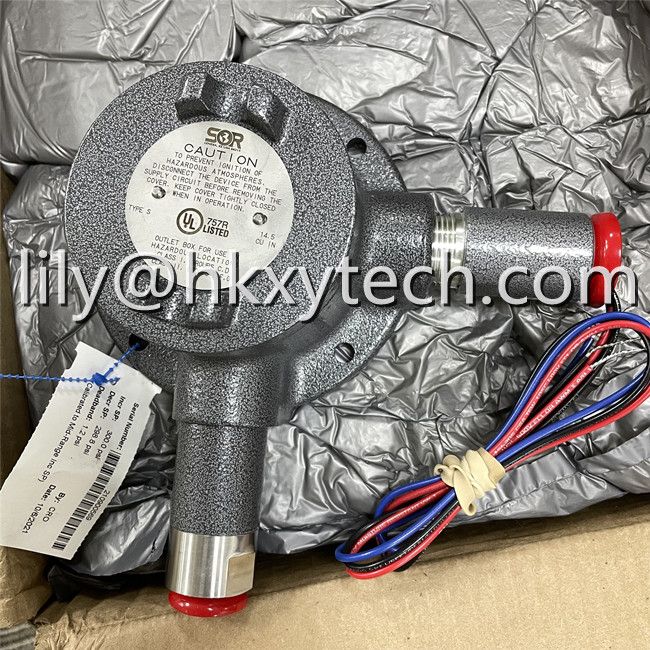

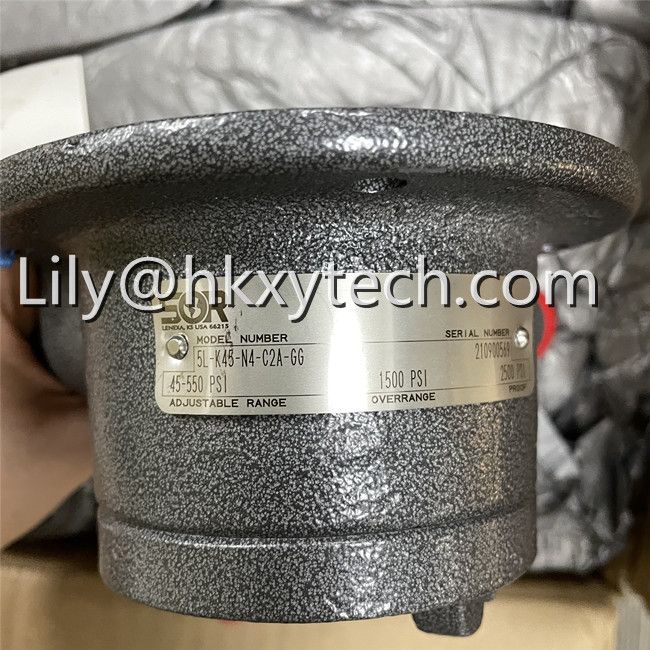

SOR® pressure switches are rugged, field-mounted instruments. The pressure sensing element of the SOR pressure switch is a force-balance, piston-actuated assembly. The sensing element is sealed by a flexible diaphragm and a static o-ring. A wide selection of wetted parts materials for media compatibility and containment are available. A metal diaphragm may be welded to the pressure port for certain applications, thereby eliminating the o-ring

Application Information

The SOR pressure switches in this catalog are suitable for a variety of process applications. Basic models with standard wetted parts are normally suitable for air, oil, water and noncorrosive processes. See the Quick Selection Guide on pages 4 and 5. Specific application requirements can normally be met by selecting optional components, such as switching elements, diaphragm systems and pressure ports. See How to Order on page 3. Certain applications may require customized specials. Consult the SOR representative in your area or the factory.

Features

Complete Product Line

 *Standard models and customized specials cover pressure ranges from 30 inches Hg VAC to 4000 psi.

Robust Construction

 *Rugged, high-cycle rate tolerance, long life, not critical to vibration, high overrange and proof pressures, excellent corrosion resistance to hostile environments.

 *Enclosure ratings: NEMA 1, 4, 4X, 7, or 9 available.

 *Ingress protection rating up to IP66.

Instrument Quality

* High resolution of set points, high repeatability, narrow dead band, negligible temperature effect.

Wetted Parts

*Wide selection materials, process connection configurations and sizes. Optional “fire-safe” pressure sensor.

Snap-Action Electrical Switching

*Wide selection UL Listed and CSA Certified switching elements for AC and DC service. Optional “hermetically sealed” capsule for hazardous and hostile environments.

Field Adjustable

*Self-locking adjustment, no special tools required. No-charge factory calibration.

Cost Effective

*Simple and fast installation without special tools, long service life, no required periodic service or spare parts.

Agency Listings/Certification

*Select models with ATEX, IECEx, CSA, FM, GOST R, INMETRO, Rostechnadzor (RTN), TIIS, UL

*Meets most code and customer requirements.

Model code for example:

12NN-N66-N4-B1A

12NN-K614-N4-B1A

12NN-K2-N4-B1A

12NN-K4-N4-B1A

12NN-K5-N4-B1A

12NN-K45-N4-B1A

12L-N66-N4-B1A

12L-K614-N4-B1A

12L-K2-N4-B1A

12L-K4-N4-B1A

12L-K5-N4-B1A

12L-K45-N4-B1A

4NN-K2-N4-B1A

4NN-K4-N4-B1A

4NN-K5-N4-B1A

4NN-K45-N4-B1A

4L-K2-N4-B1A

4L-K4-N4-B1A

4L-K5-N4-B1A

4L-K45-N4-B1A

6NN-K2-N4-F1A

6NN-K3-N4-F1A

6NN-K5-N4-F1A

6NN-K45-N4-F1A

5NN-K3-N4-F1A

5NN-K5-N4-F1A

5NN-K45-N4-F1A

9NN-K4-N4-F1A

9NN-K5-N4-F1A

9NN-K45-N4-F1A

1NN-K45-N4-F1A

6L-K2-N4-F1-A

6L-K3-N4-F1A

6L-K5-N4-F1A

6L-K45-N4-F1A

5L-K3-N4-F1A

5L-K5-N4-F1A

5L-K45-N4-F1A

9L-K4-N4-F1A

9L-K5-N4-F1A

9L-K45-N4-F1A

1L-K45-N4-F1A

52NN-K116-M4-B1A

52NN-K117-M4-B1A

54NN-K117-M4-B1A

54NN-K118-M4-B1A

56NN-K216-M2-F1A

56NN - K316-M2-F1A

52L-K116-N4-B1A

52L-K117-N4-B1A

54L-K117-N4-B1A

54L-K118-N4-B1A

56L-K216-M2-F1A

56L-K316-M2-F1A

-----------------
