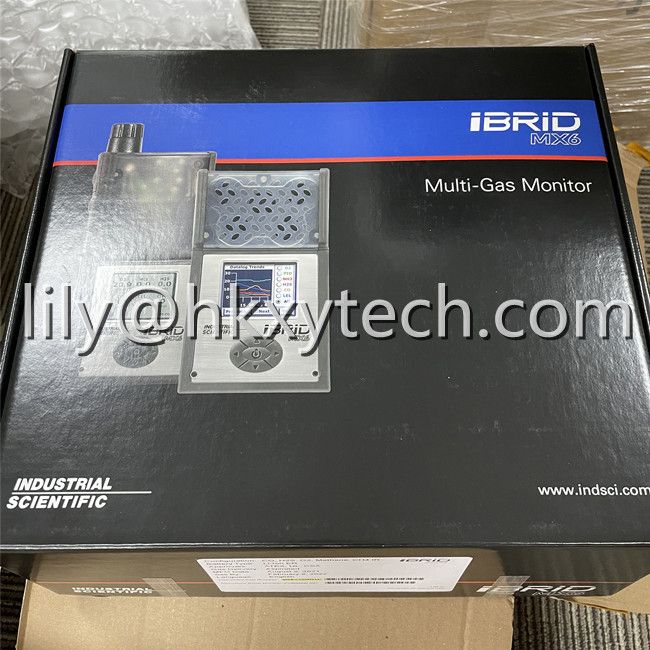

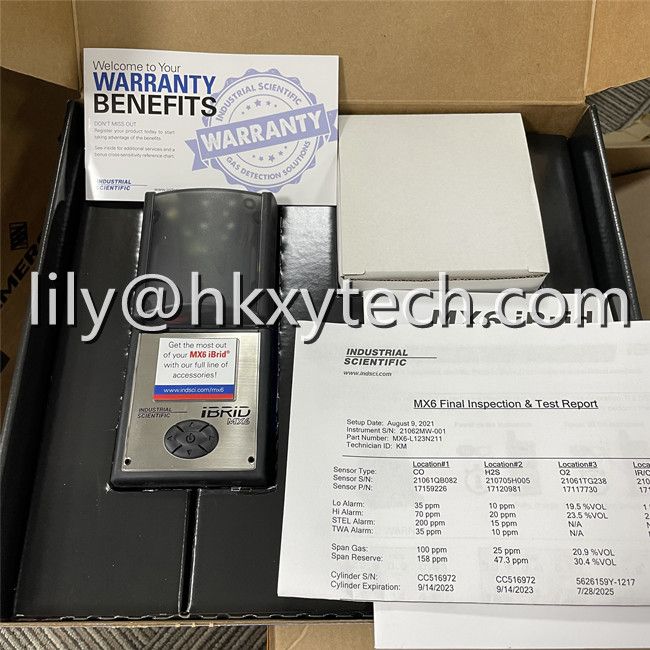

MX6 iBrid Ordering Guide

MX6 IBRID SIX-GAS MONITOR

GET READY TO SEE HAZARDOUS LEVELS OF GAS LIKE NEVER BEFORE

• Monitor up to six gases

• Tailor for your unique application with 24 sensor options including PID and IR

• Prescreen entries for benzene with an optional convertible kit

• Simplify maintenance and reporting with the DSXi Docking Station.

The MX6 iBrid® is more than an intelligent hybrid of Industrial Scientific’s best monitoring technologies—it’s the most adaptable six-gas monitor on the market. With hundreds of possible sensor combinations, and a robust list of available configuration settings, the MX6 iBrid is ready to monitor oxygen, toxic and combustible gas, and volatile organic compounds (VOCs).

As your work changes, so can your MX6 iBrid. It uses five sensor slots to detect up to six gases. Each of those sensor slots accepts a variety of sensors, which means you can use the instrument with a PID sensor one day and an infrared sensor the next. What’s more, settings allow you to adapt the instrument’s behavior for your application. If you need to use a benzene PID response factor for one application, and butadiene for others, the familiar menu structure will allow you to quickly change settings.

The rugged MX6 iBrid carries our Guaranteed for Life™ warranty and is compatible with DSX™ Docking Stations. With a DSX Docking Station, maintenance is simplified and data becomes more than a spreadsheet filled with logged readings. Proactively manage your gas detection fleet—track trends, know when instrument maintenance will be required, and understand how your MX6 iBrid instruments are being used.

Which MX6 iBrid Configuration Do You Need?

PART NO.                          DESCRIPTION

MX6-K1230201  MX6 iBrid – LEL, CO, H2S, O2, Ext. Li-ion

MX6-K0230201  MX6 iBrid – LEL, H2S, O2, Ext. Li-ion

MX6-K1030201  MX6 iBrid – LEL, CO, O2, Ext. Li-ion

MX6-K0030201  MX6 iBrid – LEL, O2, Ext. Li-ion

MX6-K123R211  MX6 iBrid with Pump – LEL, CO, H2S, O2, PID, Ext. Li-ion

MX6-K1235201  MX6 iBrid – LEL, CO, H2S, O2, SO2, Ext. Li-ion

MX6-0000R211  MX6 iBrid with Pump – PID, Ext. Li-ion

MX6-K0235201  MX6 iBrid – LEL, H2S, O2, SO2, Ext. Li-ion

SPECIFICATIONS*

INSTRUMENT WARRANTY

Warranted for as long as the instrument is supported by Industrial Scientific

CASE MATERIAL

Lexan/ABS/Stainless Steel with protective rubber overmold

DIMENSIONS

135 x 77 x 43 mm (5.3 x 3.05 x 1.7 in) without Pump

167 x 77 x 56 mm (6.6 x 3.1 x 2.2 in) with Pump

WEIGHT

409 g (14.4 oz) typical, without Pump

511 g (18.0 oz) typical, with Pump

DISPLAY/READOUT

Color Graphic Liquid Crystal Display

POWER SOURCE/RUN TIMES

Rechargeable, Extended-Range Lithium-ion Battery Pack (36 hours) without Pump

Rechargeable, Extended-Range Lithium-ion Battery Pack (20 hours) with Pump

Replaceable AA Alkaline Battery Pack (10.5 hours) without Pump

OPERATING TEMPERATURE RANGE

-20 ºC to 55 ºC (-4 ºF to 131 ºF)

OPERATING HUMIDITY RANGE

15% to 95% non-condensing (continuous)

-------------------
