New Arrival Yokogawa CA71 Portable Multifunction Calibrator

March 13, 2021

We promise 100% original brand new with 1-year warranty.

If you are interested in our products, please feel free to contact us!

-----------------------------------------------------------

HONGKONG XIEYUAN TECH CO., LIMITED

Add: 7-A16,Caishen Commercial Plaza,Hankou Railway Station,Wuhan, China

Contact: Ms. Lily

Email: lily@hkxytech.com

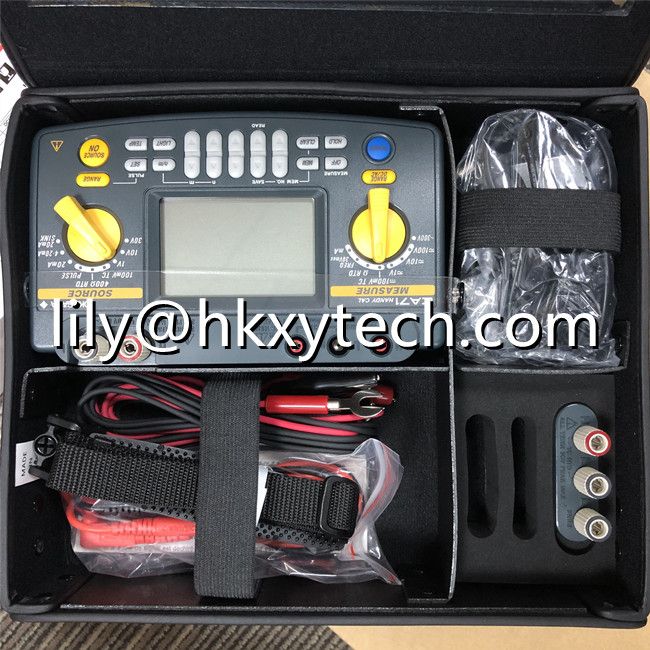

Yokogawa_CA71

Origin: made in Japan.

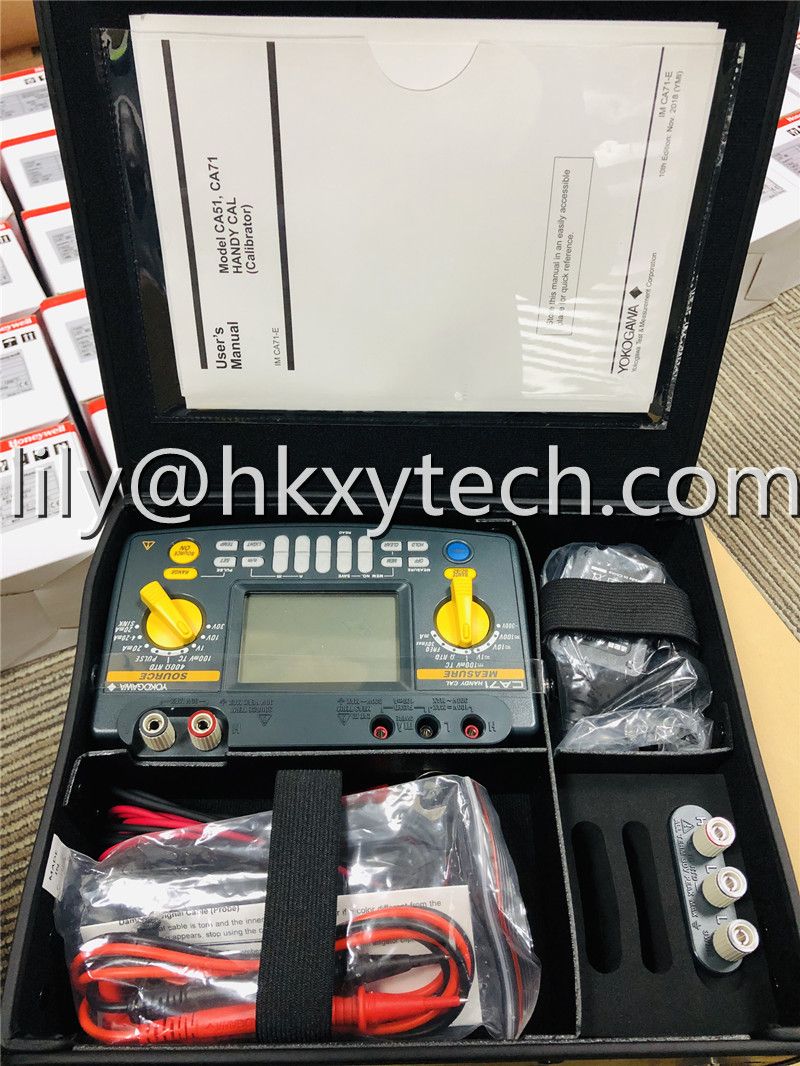

Yokogawa CA71_calibrator

The CA71 Portable Calibrator is a small, lightweight, multifunction calibrator that can simultaneously source and measure voltage, current, resistance, TC, RTD, frequency, and pulse signals. The Handy Calibrator incorporates rotary switches for simple handling. Just open the carrying case cover and connect the cables, and you're ready to take measurements.

Source and measure operations can be performed at the same time.
(Select from the following source signal and measurement signal options: voltage, current, resistance, thermocouple (TC), resistance temperature detector (RTD), frequency, pulse).
AC voltages, including supply voltage, can be measured.
Includes a wide array of additional functions.
Easy operation.
Compact size and Lightweight

Auto-Step Output Function	n value sent automatically when n/m function selection is selected (two options: approximately 2.5 seconds/step or approximately 5 seconds/step)
Sweep Functions	Sweep time (two options: approximately 16 seconds or approximately 32 seconds)
Memory Function	50 value sets (generated and measured values are stored as value sets with the same address (up to 50 value sets can be stored))
Measuring Unit Maximum Input	Voltage terminal: 300 V AC Current terminal: 120 mA DC
Current Terminal Input Protection	Fuses: 125 mA/250 V
Measuring Unit Ground Voltage	Maximum 300 V AC
Measurement Display Updating Rate	Approximately once per second
Serial Interface	Enabled when communication cable (RS232) is connected; sold separately as optional accessory
Display	Segmented LCD (Approx. 76 mm × 48 mm)
Backlight	LED backlight; auto-off after one minute (from when LIGHT key is turned on)
Power Supply	Four AA alkaline batteries, or special AC adapter (sold separately)
Battery Life	Measurement off, output 5 V DC/10 kO or greater: Approximately 40 hours Simultaneous signal generation/measurement, output 5 V DC/10 kO or greater: Approximately 20 hoursSimultaneous signal generation/measurement, output 20 mA/5 V: Approximately 12 hours (using alkaline batteries, with backlight off)
Auto-Power-Off Function	Approx. 10 minutes (auto-power-off can be disabled through a DIP switch setting)
Applicable Standard	EN55011: 1998, Class B, Group 1 EN61326-1: 1997 + A1: 1998 IEC61010-1, IEC61010-2-31
Insulation Resistance	Across input terminal and output terminal, 500 V DC, 50 MO or greater
Withstand Voltage	Across input terminal and output terminal, 3.7 kVAC, for one minute
Operating Temperature And Humidity Ranges	0 - 50°C, 20 - 80% RH (no condensation)
Storage Temperature And Humidity Ranges	-20 - 50°C, 90% RH or less (no condensation)
External Dimensions	Approx. 190 × 120 × 55 mm
Weight	Approx. 730 g (including batteries)
