MTL SD32 Surge Protection for Data & Signal applications Fuse Disconnect 32VDC/22VAC

The SD range is a series of surge protection devices combine unparalleled packing densities, application versatility, proven reliable hybrid circuitry, simple installation and optional ‘loop disconnect’ facilities – features which make the range the ultimate surge protection solution for process equipment, I/O systems and communications networks.

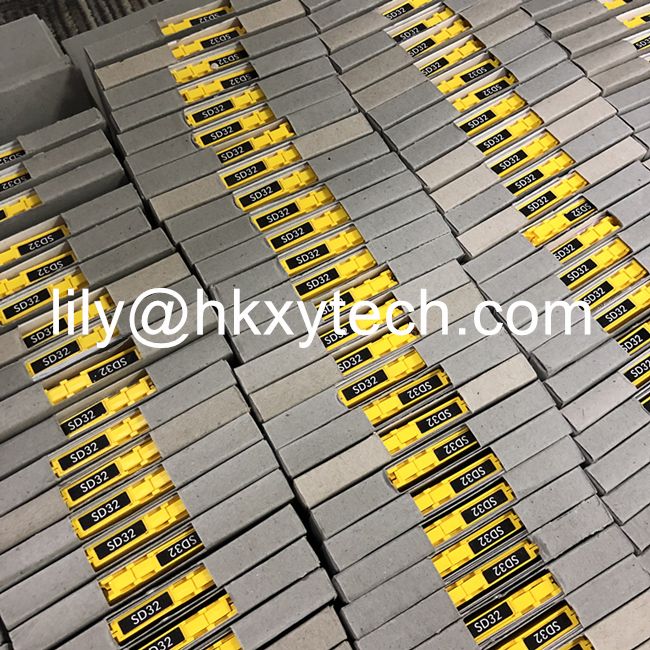

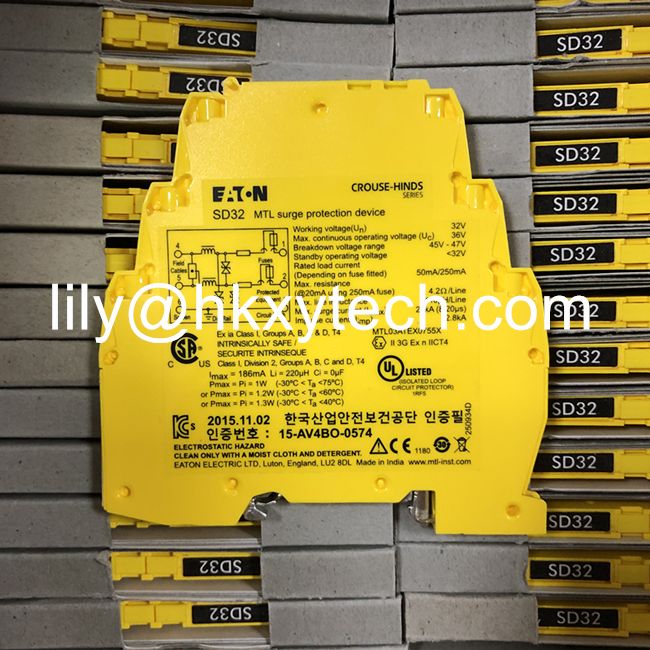

MTL Surge Protection SD32:

Fuse Disconnect, 32VDC/22VAC, 250 Nominal Current, -40 To 176 Deg F Operating Temperature, DIN Rail. The SD Series is a range of surge protection devices combining unparalleled packing densities, application versatility, proven reliable hybrid circuitry, simple installation and optional ‘loop disconnect’ facilities – features which make the series the ultimate surge protection solution for process equipment

Specification:

Manufacturer : MTL instruments

Nominal voltage+ (Un) : 32Vdc, 22Vac

Nominal current (In) : 250 mA

Series resistance (W/line) : 4.2†

Max. leakage current (µA) : 5

Rated voltage *MCOV) (Uc ) : 36

Voltage protection level (Up) @1kV/µs (V) : <45

Residual voltage @isn (V) : 60

Bandwidth (frequency) (f G) : 25 kHz

Special feature : Fuse disconnect

Dimensions (HxWxD), approx. : 10.13cm x 9.9cm x 0.7cm

Shipping Weight : 1 Kg
