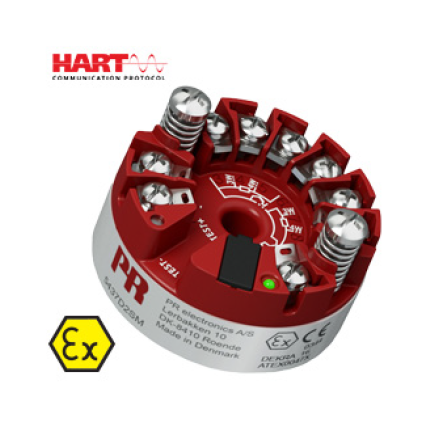

2-wire HART 7 temperature transmitter
RTD, TC, potentiometer, linear resistance and bipolar mV input
Single or true dual inputs with sensor redundancy and drift detection
Wide ambient operating temperature of -50 to +85°C
Total accuracy from 0.014%
2.5 kVAC galvanic isolation
Full assessment to IEC61508 : 2010 up to SIL 2/3
Application
Temperature measurement of a wide range of TC and RTD types.
Conversion of wide span linear resistance and potentiometer inputs.
Conversion of bipolar mV signals to 4...20 mA.
Integration into asset management schemes.
Critical applications requiring superior accuracy and/or sensor redundancy and drift detection.
Technical characteristics
True dual input transmitter. High density 7-terminal design accepts the widest range of dual input combinations.
Sensor redundancy - output automatically switches to secondary sensor in event of primary sensor failure, maintaining uptime.
Sensor drift detection - alerts when sensor differential exceeds user-defined limits, for maintenance optimization.
Dynamic variable mapping for process data in addition to the primary variable e.g. dual input features such as average, differential and min./max. tracking.
Groundbreaking digital and analog signal accuracy over full input span and ambient conditions.
Extensive sensor matching including Callendar Van Dusen and custom linearizations.
Programmable input limits with runtime metering ensure maximum process traceability and sensor out of range protection.
IEC 61508 : 2010 full assessment up to SIL 3 together with enhanced EMC Functional Safety testing to IEC 61236-3-1.
Meets NAMUR NE21, NE43, NE44, NE89, NE95 and NE107 compliant diagnostics information.
Mounting / installation
For DIN form B sensor head mounting.
Configuration via standard HART communication interfaces or by PR 5909 Loop Link.
The 5437D can be mounted in zone 0, 1, 2 and zone 20, 21, 22 including M1 / Class I, Division 1, Groups A, B, C, D.
| Environmental Conditions | |
| Operating temperature | -50°C to +85°C (standard) -40°C to +80°C (SIL) |
| Storage temperature | -50°C to +85°C |
| Calibration temperature | 23...25°C |
| Relative humidity | < 99% RH (non-cond.) |
| Protection degree (encl./terminal) | IP68 / IP00 |
| Mechanical specifications | |
| Dimensions | Ø 44 x 20.2 mm |
| Center hole diameter | Ø 6.35 mm / ¼ in |
| Weight approx. | 50 g |
| Wire size | 1 x 1.5 mm2 stranded wire |
| Screw terminal torque | 0.4 Nm |
| Vibration | IEC 60068-2-6 |
| 2...25 Hz | ±1.6 mm |
| 25...100 Hz | ±4 g |
| Common specifications | |
| Supply | |
| Supply voltage | 7.5*...30** VDC |
| Internal power dissipation | ≤ 850 mW |
| Additional min. supply voltage when using test terminals | 0.8 V |
| Min. load resistance at >37 V supply | (Vsupply – 37) / 23 mA |
| Isolation voltage | |
| Isolation voltage, test / working | 2.5 kVAC / 42 VAC |
| Response time | |
| Response time | 70 ms |
| Programmable damping | 0...60 s |
| Polarity protection | All inputs and outputs |
| Warm-up time | < 5 min. |
| Start-up time | < 2.75 s |
| Programming | Loop Link & HART |
| Write protection | Jumper or software |
| Signal / noise ratio | > 60 dB |
| Long-term stability, better than | ±0.05% of span / year (±0.18% of span / 5 years) |
| Signal dynamics, input | 24 bit |
| Signal dynamics, output | 18 bit |
| Effect of supply voltage change | < 0.005% of span / VDC |
| Accuracy | See manual for details |
| EMC immunity influence | < ±0.1% of span |
| Extended EMC immunity: NAMUR NE21, A criterion, burst |
