Order No: RAYR3I2ML3+

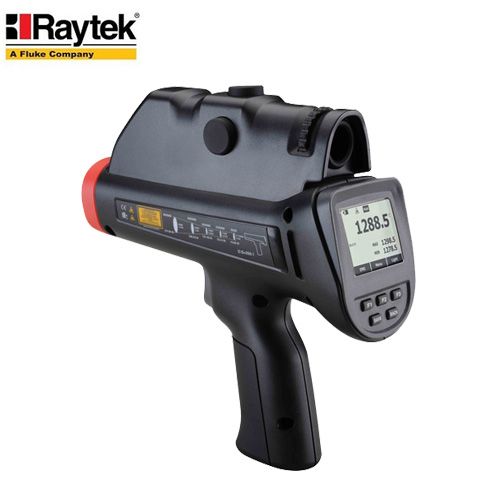

Raynger® 3i Plus

The Raytek® Raynger 3i Plus infrared thermometer is a new generation of portable products designed in accordance with industry standards to meet process performance requirements in hot environments. It combines high-precision, superior Distance-to-Spot (D:S) ratio with high accuracy and a robust

feature set that provides excellent temperature measurement solutions for process temperature detection and fault previewing.

Raytek Model RAYR3IPLUS2ML

3i Plus 1M & 2M are portable thermometers designed for high temperature applications. They cover a temperature range of 400 - 3000 oC (752 - 5432 oF) (depending on the model).

Superior Distance-to-Spot (D:S) ratio allows users to measure high temperature targets from longer distances, ensuring accurate temperature readings and operator safety.

Applications:

■ Iron

■ Steel

■ Metal Refining

■ Foundry and

Processing Operations

■ Ceramics

■ Semiconductor

■ Chemical Furnaces

■ Petrochemical Furnaces

Benefits:

Stronger – Users will benefit from a rugged design, extended battery life and faster exposure time.

Simpler – Increases operator efficiency, minimizing labor and maintenance cost.

Safer – Reduces risks of costly accidents and ensures operator safety. Reduces the risk of sensor overheating while minimizing repair costs and risk of process temperature failures.

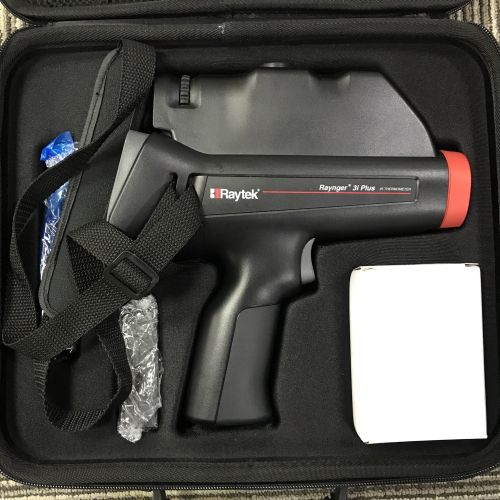

What's included with the Raytek RAYR3IPLUS2MSCL

• Infrared thermometer

• Carrying case

• Neck strap

• Spare Lithium-ion rechareable battery, 2.5Ah

• Mini USB port adaptor with multi-country power plug (100–240 VAC, 50/60Hz)

• Mini USB-to-DC jack converter for charging battery separately

• Computer cable with USB-to-Mini USB, 1.5m (4.9ft)

Raytek RAYR3IPLUS2MSCL Offers

Features

• A stronger, simpler, safer infrared thermometer with innovative features for enhanced ease-of-use to increase operator efficiency

• Combines superior Distance-to-Spot (D:S) ratio with high accuracy and a robust feature set that provides excellent non-contact temperature measurement solutions for process temperature detection and fault previewing

• Designed for high temperature applications, it covers a temperature range of 400 to 2000ºC (752 to 3632ºF)

• Displays MAX, MIN, DIF, and AVG temperatures

• Dual laser for precise measurement of smaller targets, the measurement spot is indicated at the point the two laser beams meet

• Red Dot sighting technology for accurate targeting when high temperature targets are not visible using laser sighting alone (The Red Dot light in the scope highlights the area with a red light indicating where the temperature is being measured when the target is bright or red hot and the laser cannot be seen.)

• High optical resolution (250:1) ensures accurate temperature readings at longer distances

• "Red Nose" heat resistant warning-detector and alarm ensures operator safety and efficiency

• Audible alarms for target temperature/ambient temperature/low battery

• Compensates for energy reflected by the background around your target so it doesn't affect your reading

• Adjustable emissivity and predefined emissivity table

• Transmissivity and background temperature compensation

• Profile definition to convenient measurement

• Curve to display trend with selectable time span

• Intuitive user interface for easy parameter set-up, enabling ‘on-site’ display of data analysis and trending

• DataTemp® Windows PC software supports real-time communication, data storage, graphing and analysis

• Data storage: up to 4,900 data points with location, date, and time stamp

• Includes a mobile app for quick data transfer and collaboration, and can be used temporarily as an online thermometer

• Fast and easy data transfer to PC or smartphone, using USB or Bluetooth

• Longer operational cycle (24 h) on rechargeable batteries

• Locking trigger and tripod mount allow for continuous operation

• Rugged design reduces risk of damage and minimizes service costs

Raytek 3I series
