ATS01N125FT

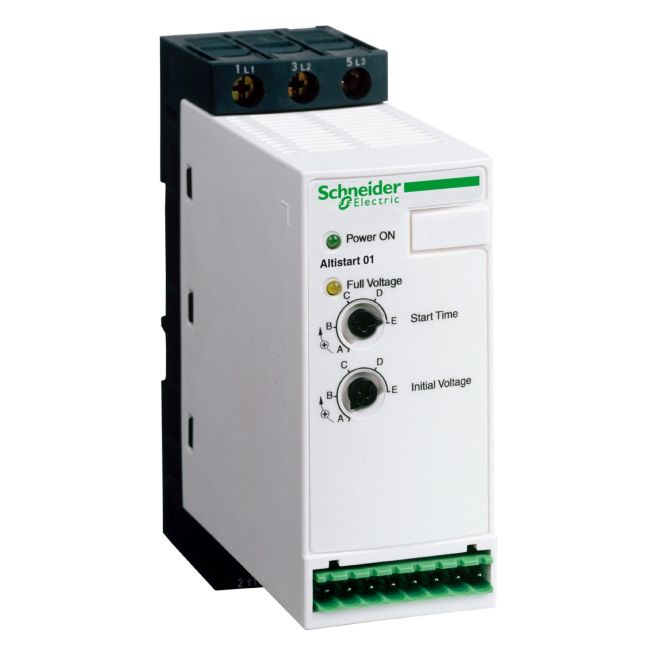

Soft starter for asynchronous motor - ATS01 - 25 A - 110..480V - 2.2..11 KW
Main | ||
| range of product | Altistart 01 | |
| product or component type | Soft starter | |
| product destination | Asynchronous motors | |
| product specific application | Simple machine | |
| device short name | ATS01 | |
| Phase | 1 phase | |
| [Us] rated supply voltage | 110...480 V - 10...10 % | |
| motor power kW | 11 kW, 3 phase 400 V | |
| 3 kW, 3 phase 230 V | ||
| 4 kW, 3 phase 230 V | ||
| 9 kW, 3 phase 400 V | ||
| 7.5 kW, 3 phase 400 V | ||
| 5.5 kW, 3 phase 230 V | ||
| 2.2 kW, 1 phase 230 V | ||
| Maximum Horse Power Rating | 11 hp, 3 phase 460 V | |
| 2 hp, 3 phase 210 V | ||
| 3 hp, 3 phase 210 V | ||
| 5 hp, 3 phase 230 V | ||
| 9 hp, 3 phase 460 V | ||
| 7.5 hp, 3 phase 230 V | ||
| IcL starter rating | 25 A | |
| utilisation category | AC-53B EN/IEC 60947-4-2 | |
| current consumption | 125 A at nominal load | |
| type of start | Start with voltage ramp | |
| power dissipation in W | 1 W at full load and at end of starting | |
| 126 W in transient state | ||
| Complementary | ||
| assembly style | With heat sink | |
| function available | Integrated bypass | |
| supply voltage limits | 99…528 V | |
| supply frequency | 50...60 Hz - 5...5 % | |
| network frequency | 47.5...63 Hz | |
| output voltage | <= power supply voltage | |
| [Uc] control circuit voltage | 110 V AC +/- 10 % 35 mA | |
| 24 V AC/DC +/- 10 % 30 mA | ||
| 240 V AC +/- 10 % 80 mA | ||
| starting time | 1 s / 100 | |
| 5 s / 20 | ||
| Adjustable from 1 to 5 s | ||
| starting torque | 30...80 % of starting torque of motor connected directly on the line supply | |
| discrete output current | 2 A DC-13 | |
| 3 A AC-15 | ||
| tightening torque | 4.43 lbf.in (0.5 N.m) | |
| 16.82…22.13 lbf.in (1.9…2.5 N.m) | ||
| electrical connection | 4 mm screw clamp terminal - rigid 1 1...10 mm² AWG 8 power circuit | |
| Screw connector - rigid 1 0.5...2.5 mm² AWG 14 control circuit | ||
| 4 mm screw clamp terminal - rigid 2 1...6 mm² AWG 10 power circuit | ||
| Screw connector - rigid 2 0.5...1 mm² AWG 17 control circuit | ||
| Screw connector - flexible with cable end 1 0.5...1.5 mm² AWG 16 control circuit | ||
| 4 mm screw clamp terminal - flexible without cable end 1 1.5...10 mm² AWG 8 power circuit | ||
| Screw connector - flexible without cable end 1 0.5...2.5 mm² AWG 14 control circuit | ||
| 4 mm screw clamp terminal - flexible with cable end 2 1...6 mm² AWG 10 power circuit | ||
| 4 mm screw clamp terminal - flexible without cable end 2 1.5...6 mm² AWG 10 power circuit | ||
| Screw connector - flexible without cable end 2 0.5...1.5 mm² AWG 16 control circuit | ||
| marking | CE | |
| operating position | Vertical +/- 10 degree | |
| height | 4.88 in (124 mm) | |
| width | 1.77 in (45 mm) | |
| depth | 5.16 in (131 mm) | |
| net weight | 0.77 lb(US) (0.35 kg) | |
| compatibility code | ATS01N1 | |
| Motor power range AC-3 | 2.2…3 kW 200…240 V 3 phase | |
| 2.2…3 kW 200…240 V 1 phase | ||
| 4…6 kW 200…240 V 3 phase | ||
| 7…11 kW 200…240 V 3 phase | ||
| 7…11 kW 380…440 V 3 phase | ||
| motor starter type | Soft starter | |
