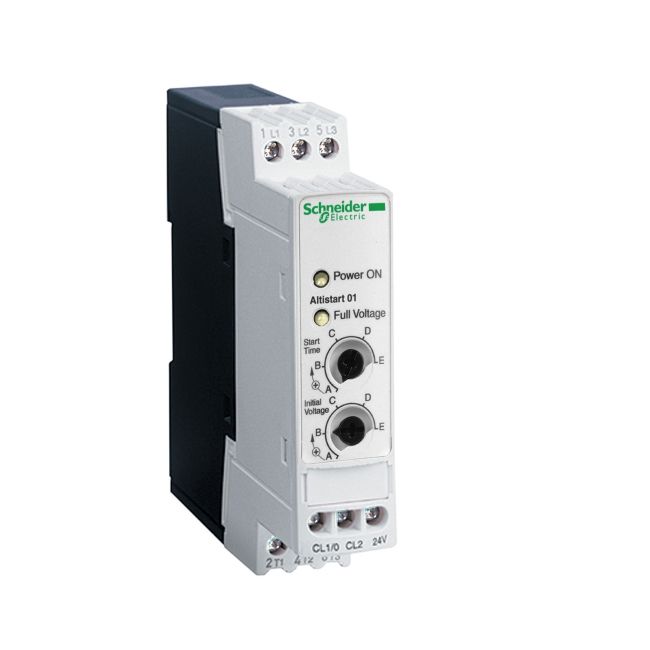

ATS01N103FT
Soft starter for asynchronous motor - ATS01 - 3 A - 110..480V - 0.55..1.1 KW
Main | |
| range of product | Altistart 01 |
| product or component type | Soft starter |
| product destination | Asynchronous motors |
| product specific application | Simple machine |
| device short name | ATS01 |
| Phase | 1 phase |
| rated supply voltage | 110...480 V - 10...10 % |
| motor power kW | 0.37 kW, 3 phase 230 V |
| 0.55 kW, 3 phase 230 V | |
| 1.1 kW, 3 phase 400 V | |
| 0.37 kW, 1 phase 230 V | |
| Maximum Horse Power Rating | 0.5 hp, 3 phase 230 V |
| 0.5 hp, 3 phase 460 V | |
| 1.5 hp, 3 phase 460 V | |
| IcL starter rating | 3 A |
| utilisation category | AC-53B EN/IEC 60947-4-2 |
| current consumption | 15 A at nominal load |
| type of start | Start with voltage ramp |
| power dissipation in W | 19 W in transient state |
| 4 W at full load and at end of starting | |
| Complementary | |
| assembly style | With heat sink |
| function available | Integrated bypass |
| supply voltage limits | 99…528 V |
| supply frequency | 50...60 Hz - 5...5 % |
| network frequency | 47.5...63 Hz |
| output voltage | <= power supply voltage |
| [Uc] control circuit voltage | 110 V AC +/- 10 % 30 mA |
| 24 V AC/DC +/- 10 % 25 mA | |
| 240 V AC +/- 10 % 65 mA | |
| starting time | 1 s / 100 |
| 5 s / 20 | |
| Adjustable from 1 to 5 s | |
| starting torque | 30...80 % of starting torque of motor connected directly on the line supply |
| discrete output current | 2 A DC-13 |
| 3 A AC-15 | |
| tightening torque | 7.08 lbf.in (0.8 N.m) |
| electrical connection | Cage type connector - rigid 1 2.5 mm² AWG 14 control circuit |
| Cage type connector - rigid 1 2.5 mm² AWG 14 power circuit | |
| Cage type connector - rigid 2 1 mm² AWG 17 control circuit | |
| Cage type connector - rigid 2 1 mm² AWG 17 power circuit | |
| Cage type connector - flexible with cable end 1 2.5 mm² AWG 14 control circuit | |
| Cage type connector - flexible with cable end 1 2.5 mm² AWG 14 power circuit | |
| Cage type connector - flexible without cable end 1 2.5 mm² AWG 14 control circuit | |
| Cage type connector - flexible without cable end 1 2.5 mm² AWG 14 power circuit | |
| Cage type connector - flexible with cable end 2 0.75 mm² AWG 18 control circuit | |
| Cage type connector - flexible with cable end 2 0.75 mm² AWG 18 power circuit | |
| Cage type connector - flexible without cable end 2 1 mm² AWG 17 control circuit | |
| Cage type connector - flexible without cable end 2 1 mm² AWG 17 power circuit | |
| marking | CE |
| operating position | Vertical +/- 10 degree |
| height | 3.94 in (100 mm) |
| width | 0.91 in (23 mm) |
| depth | 3.94 in (100 mm) |
| net weight | 0.35 lb(US) (0.16 kg) |
| compatibility code | ATS01N1 |
| Motor power range AC-3 | 0…0.5 kW 200…240 V 1 phase |
| 0…0.5 kW 200…240 V 3 phase | |
| 0.55…1 kW 200…240 V 3 phase | |
| 1.1…2 kW 380…440 V 3 phase | |
| motor starter type | Soft starter |
